The Rise of Large Compact Track Loaders: New Models and Technologies

As the industry continues to demand larger compact loaders, manufacturers are constantly introducing new models. This article introduces some of the largest and latest crawler loader models and new technologies reshaping the industry.

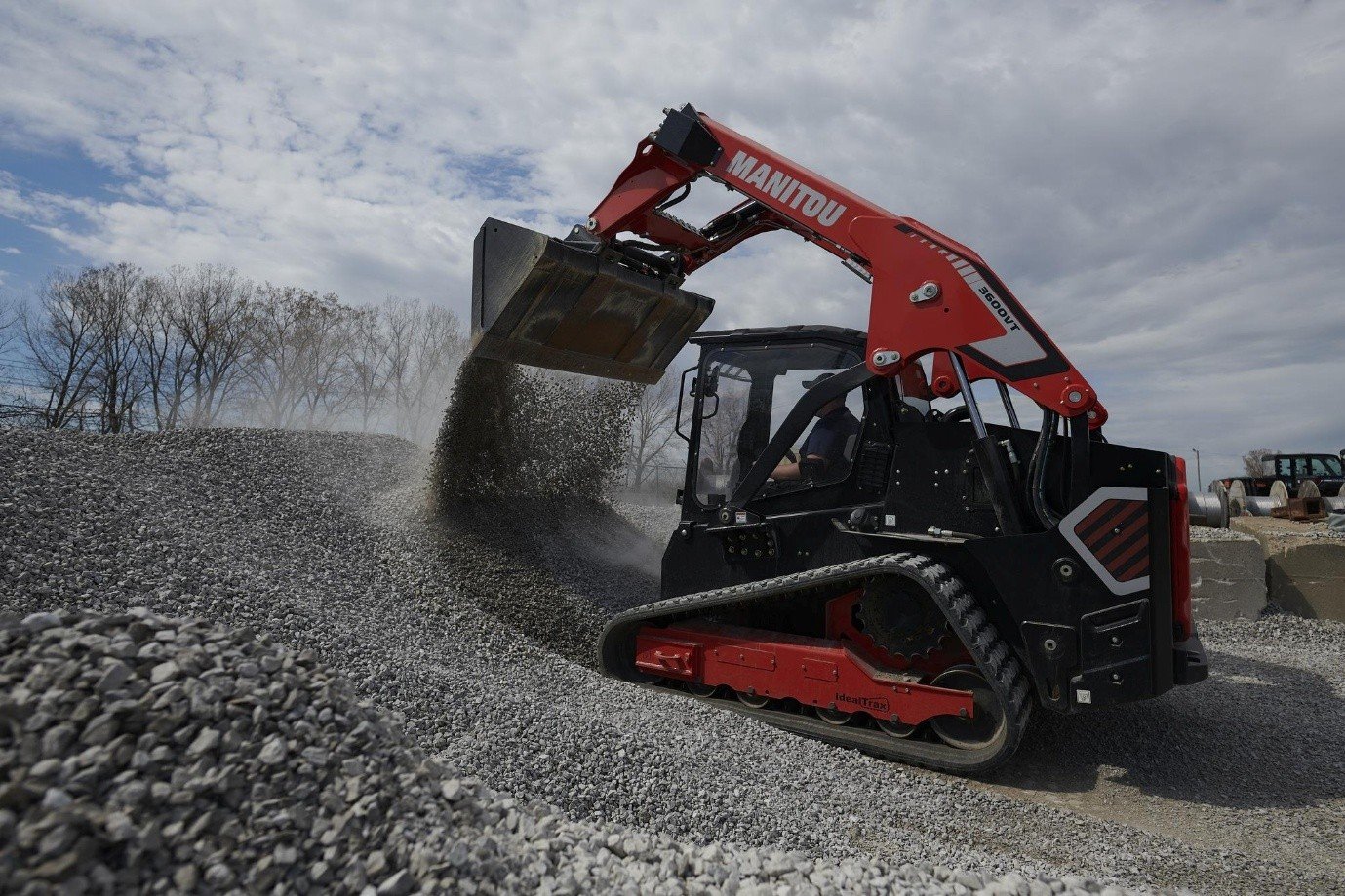

Manitou 3600VT

Manitou manufactures large-frame compact track loaders and skid-steer loaders in addition to telehandlers. The 3600VT is Manitou's largest compact track loader ever.

The new loader features a vertical lift design with a hinge pin height of up to 11 feet 4 inches. Each model comes standard with a cast connecting rod, adding strength for ground-engaging applications. Breakout force for the bucket and lift arms has also been increased. Large compact track loaders are commonly used for truck loading and material handling, making the vertical lift path more suitable for both types of activities.

To enhance versatility and reduce Total Cost of Ownership, Manitou has improved the hydraulic flow and pressure on both standard-flow and high-flow models, allowing for the use of high-powered attachments. Standard-flow units offer up to 25 gallons per minute and 3,450 psi, while high-flow models offer 40 gallons per minute and up to 3,450 psi. Variable flow control helps attachments operate at optimal performance while conserving fuel.

Manitou stated that they drew influences from the automotive industry when designing the new model's cab, industrialised for heavy-duty everyday use. Each machine's cab comes standard with accelerator and decelerator pedals, a dome light, a USB charging port with equipment storage, and removable rubber floor mats with a drain for easy cleaning.

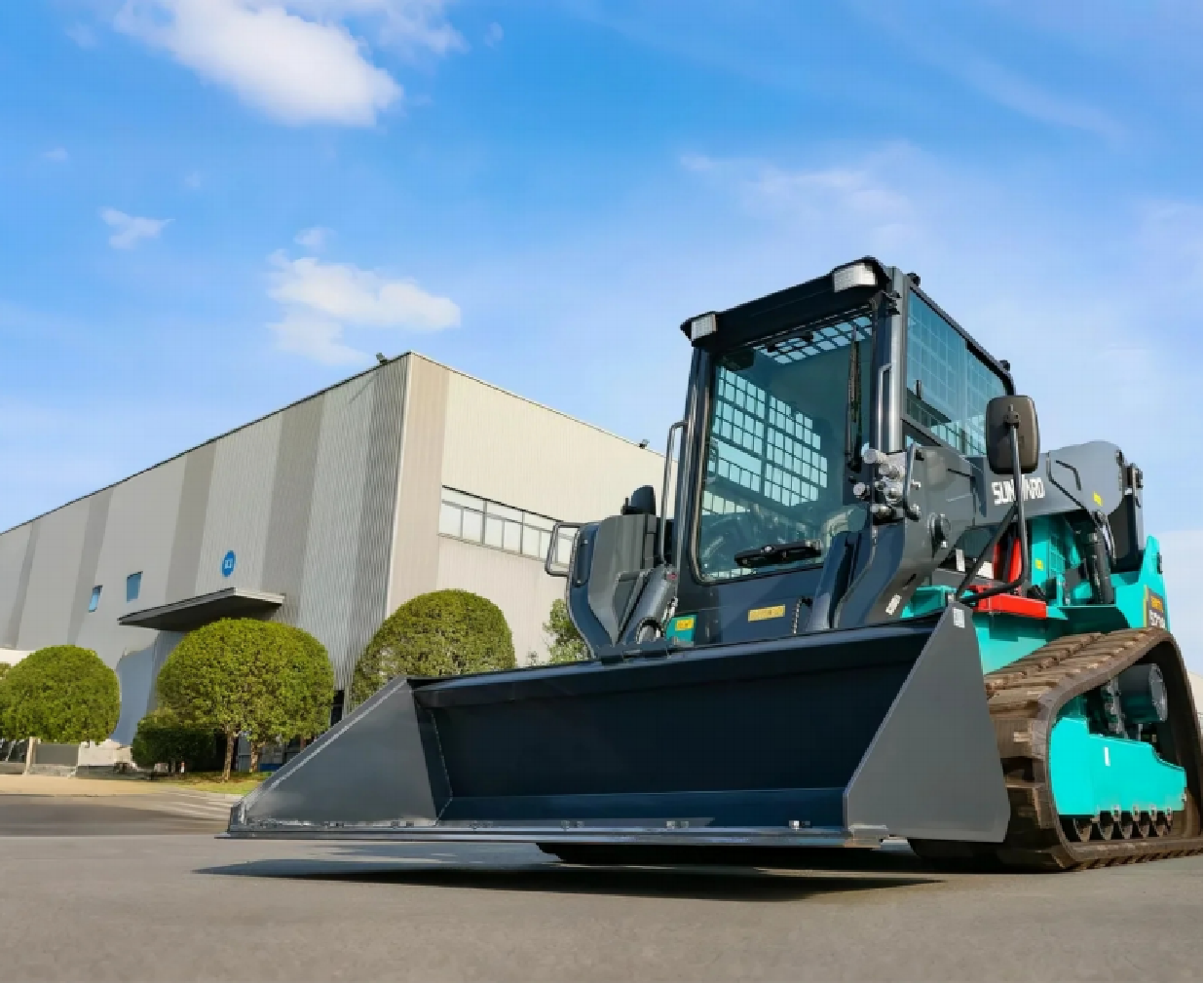

Sunward SWTL5238

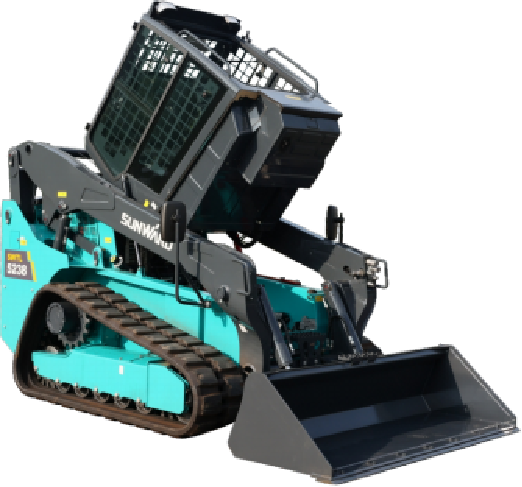

As a leading Chinese compact loader manufacturer, Sunward launched the SWTL5238 globally in North America. The SWTL5238 features a brand-new design with a maximum travel speed of 12 km/h, traction force of 5,500 N, maximum lift height of 3,361 mm, and rated lift capacity of 1,500 kg. The cab opens upward 58 degrees. The rear maintenance hatch is split into upper and lower sections, opening 31 degrees upward and 90 degrees to the left, maximising maintenance and servicing convenience. The radiator also opens 20 degrees upward.

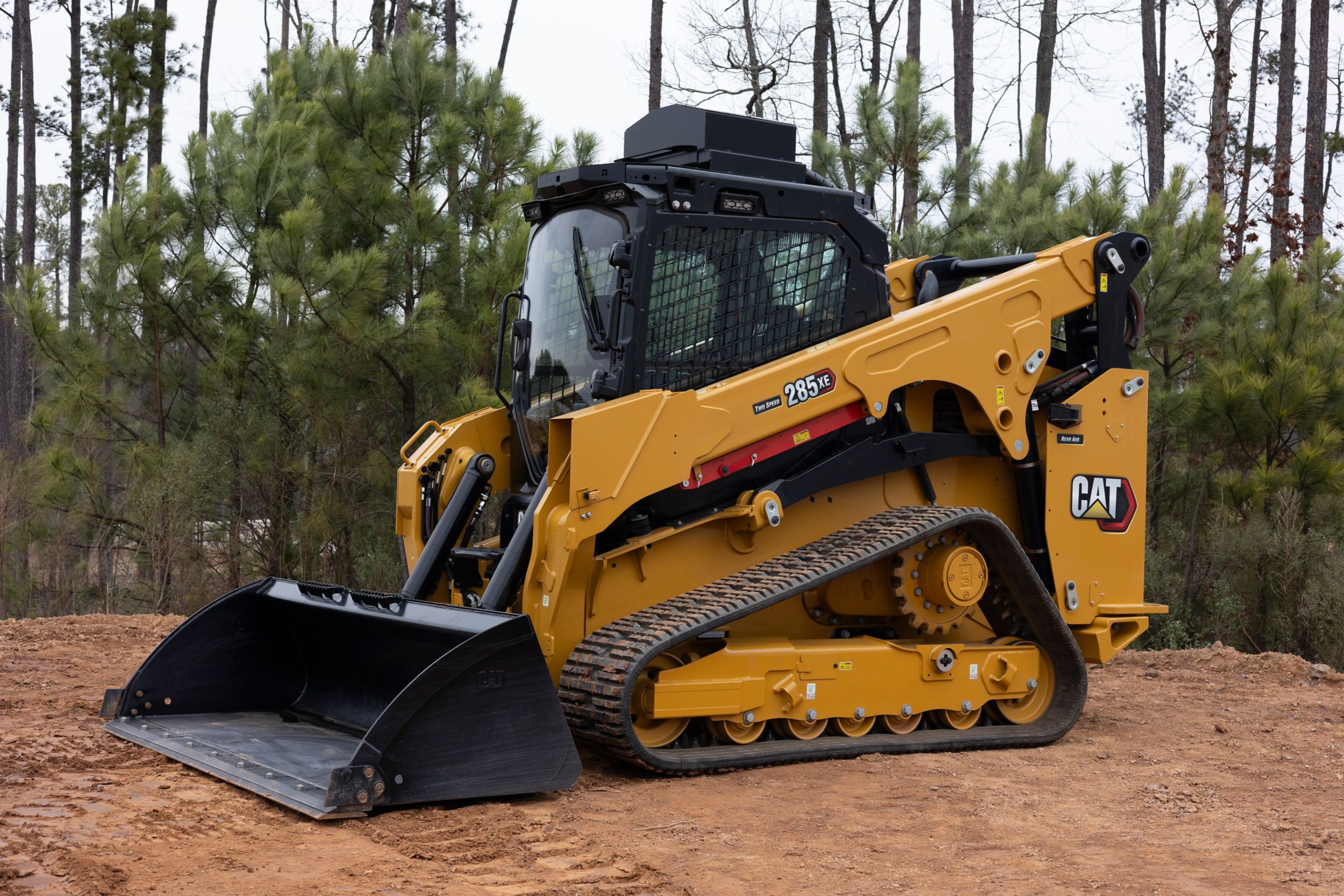

CAT 285 XE

Caterpillar introduced a new machine nomenclature: Skid Steer Loader models now end with "0," and CTL models end with "5." The Cat 285 XE Compact Track Loader features a vertical lift design, providing greater reach and lift height for quick and easy truck loading. Its standard E-bar undercarriage and two-speed travel provide excellent traction, flotation, stability and speed.

The E-bar undercarriage has a pivot at the rear allowing for some movement, while the front equalizer bar moves around the centre. The equalizer bar is not welded to the machine chassis, allowing the undercarriage to move independently and improve stability when loaded with heavy materials. The redesigned cab layout provides more space and easier ingress and egress. Larger cab design increases overall volume by 22% and footwell by 26%.

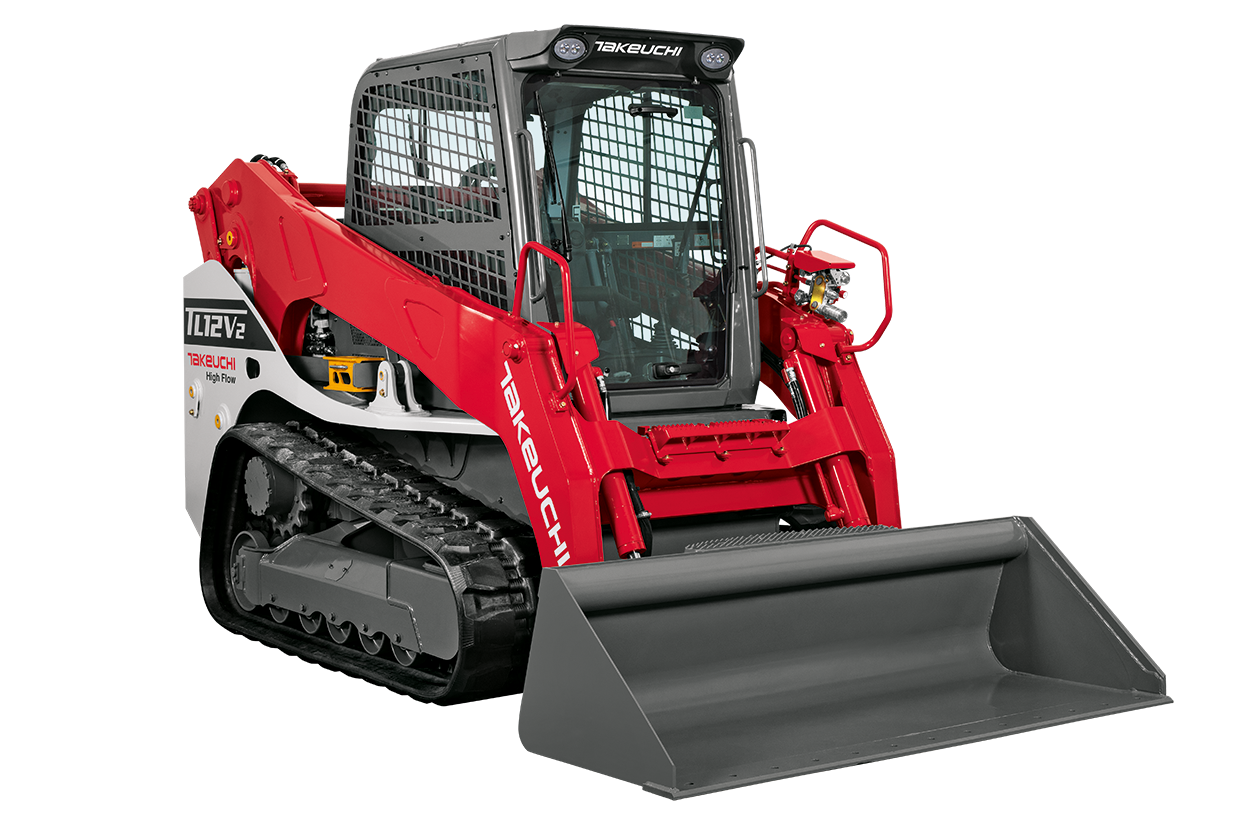

Takeuchi TL12V2

Takeuchi, the world's first company to develop a compact crawler loader, officially debuted the TL12V2 - their first vertical lift path compact crawler loader (CTL). It features a 17.7-inch wide "silent track" design with a new tread pattern that reduces noise and vibration, creates greater flotation and minimises ground disturbance. The steel-core rubber track extends its life while reducing impact and providing a smoother ride.

The cab features a high-back, deluxe air-suspension seat. A new 5.7-inch colour display and pilot handle allow for direct hydraulic flow adjustment. An AM/FM/MP3 radio includes a NOAA weather band. Though Takeuchi equipment is priced at a premium, it offers the lowest total cost of ownership in the industry.

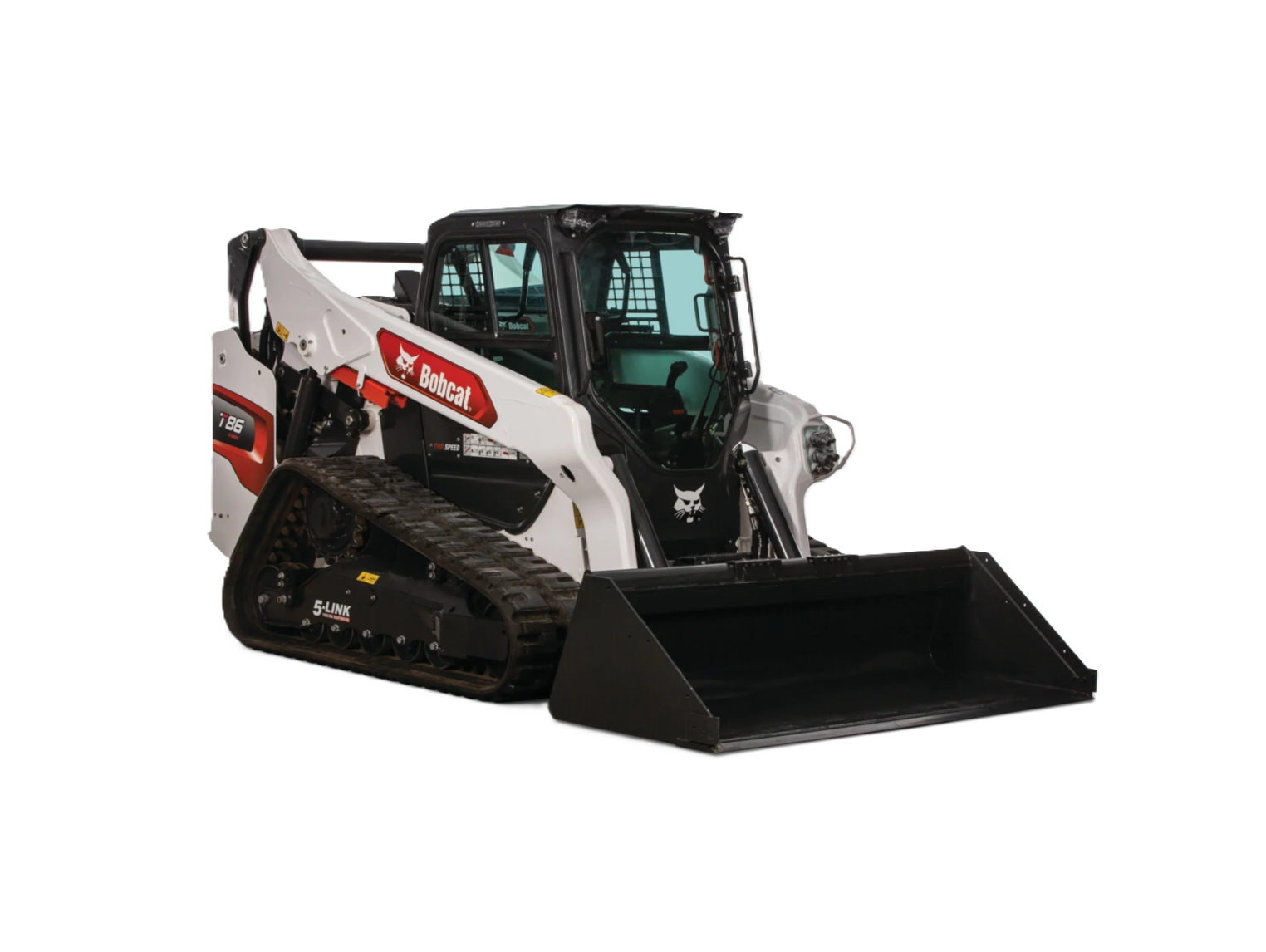

Bobcat T86

As a benchmark setter in the compact loader market with a 30%-40% share in North America, Bobcat's design philosophy is worth studying closely. The Selectable Joystick Control offers a choice of ISO or H-mode. All loaders equipped with the optional Joystick Control can also be operated remotely without an operator in the cab.

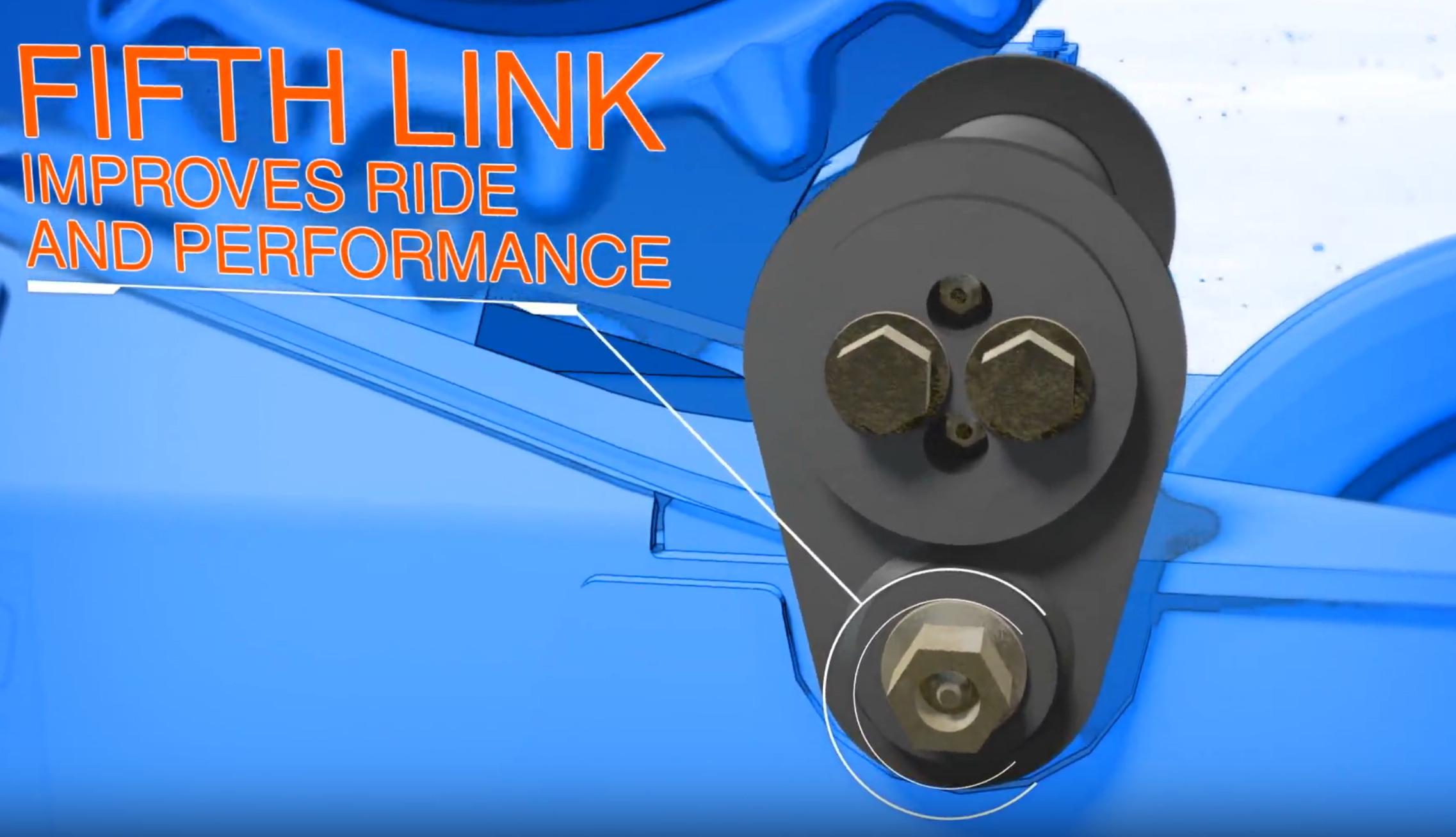

Every component of the five-link torsion suspension chassis has been designed to withstand the toughest jobsite conditions. The torsion axle dampens vibration for a smoother ride. No other manufacturer can match the ride quality of the torsion suspension. The T86 is available in three hydraulic flow rates: Standard (89.3 L/min), High (138.5 L/min), and Super (158.9 L/min).

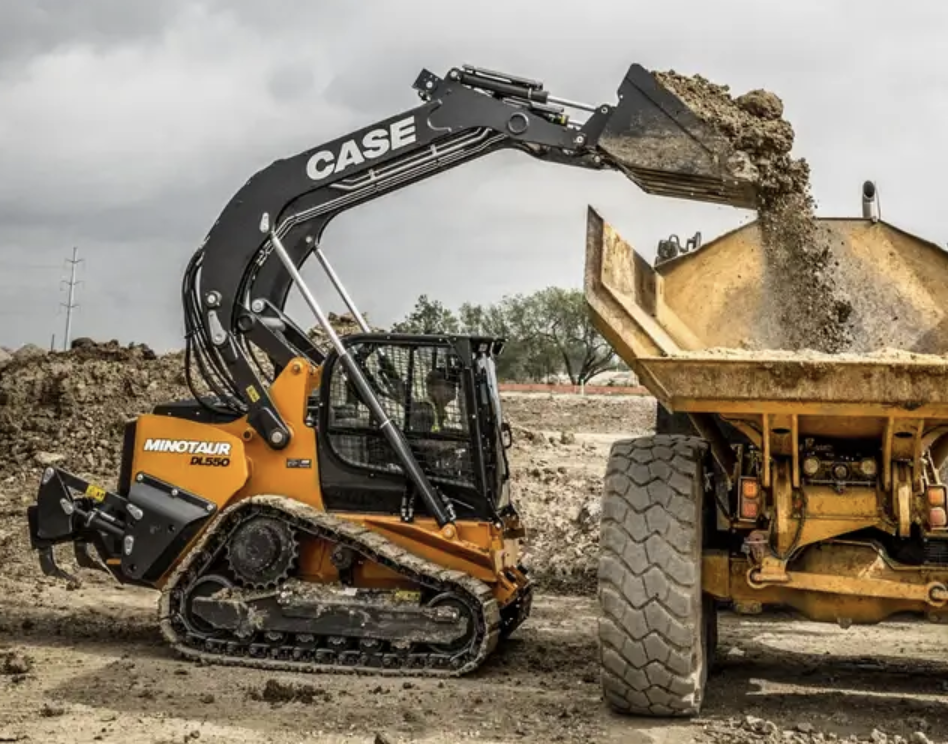

CASE Minotaur DL550

The CASE Minotaur DL550 compact dozer loader weighs significantly more than other compact loaders (8.4 tons), representing a "dozer and loader" hybrid. It boasts 114 horsepower, over 25,000 pounds of tractive effort, over 12,000 pounds of bucket breakout force, and a rated operating capacity of 5,500 pounds (at 50% of tipping load). CASE designed the Minotaur with an Integrated C-frame Chassis and a six-way dozer blade integrated into the frame structure.

JCB 4TS Teleskid

The JCB 4TS Teleskid combines four functions in one: forklift, telescopic handler, small wheel loader and skid steer loader. Building on the world's first single-arm telescopic skid steer loader (3TS Teleskid), it features an industry-leading lift height of 4.5 metres and a reach of 2.5 metres, making it an ideal replacement for smaller telehandlers on construction sites. Its 3.9-metre dump height meets most working conditions, and three hydraulic flow rates (standard 90 L/min, high 125 L/min and ultra 160 L/min) accommodate a variety of high-powered attachments.

Sino Partners Insights

Caterpillar has stated that all of its next-generation loaders will utilise vertical lift, reflecting the market's clear shift away from radial-lift compact loaders. All manufacturers are simultaneously improving the driver experience, increasing cab space and offering features like heated seats, air suspension seats and three-point seatbelts to reduce discomfort during extended work.

Both JCB and Case have launched highly successful crossover products in their respective segments. Their success stems from customer demand, extensive testing and feedback, resulting in bold innovations that are worth studying closely for Chinese manufacturers entering the Oceania market.

From a product portfolio perspective, releasing an entire product line at once creates a clear product matrix, covering diverse customer needs, facilitating marketing and dealer promotion, and enhancing brand integrity and professionalism.
