The Rise of Large Compact Track Loaders: New Models and Technologies

As the industry continues to demand larger compact loaders, manufacturers are constantly introducing new models. This article introduces some of the largest and latest crawler loader models and new technologies in the industry.

Manitou 3600VT.

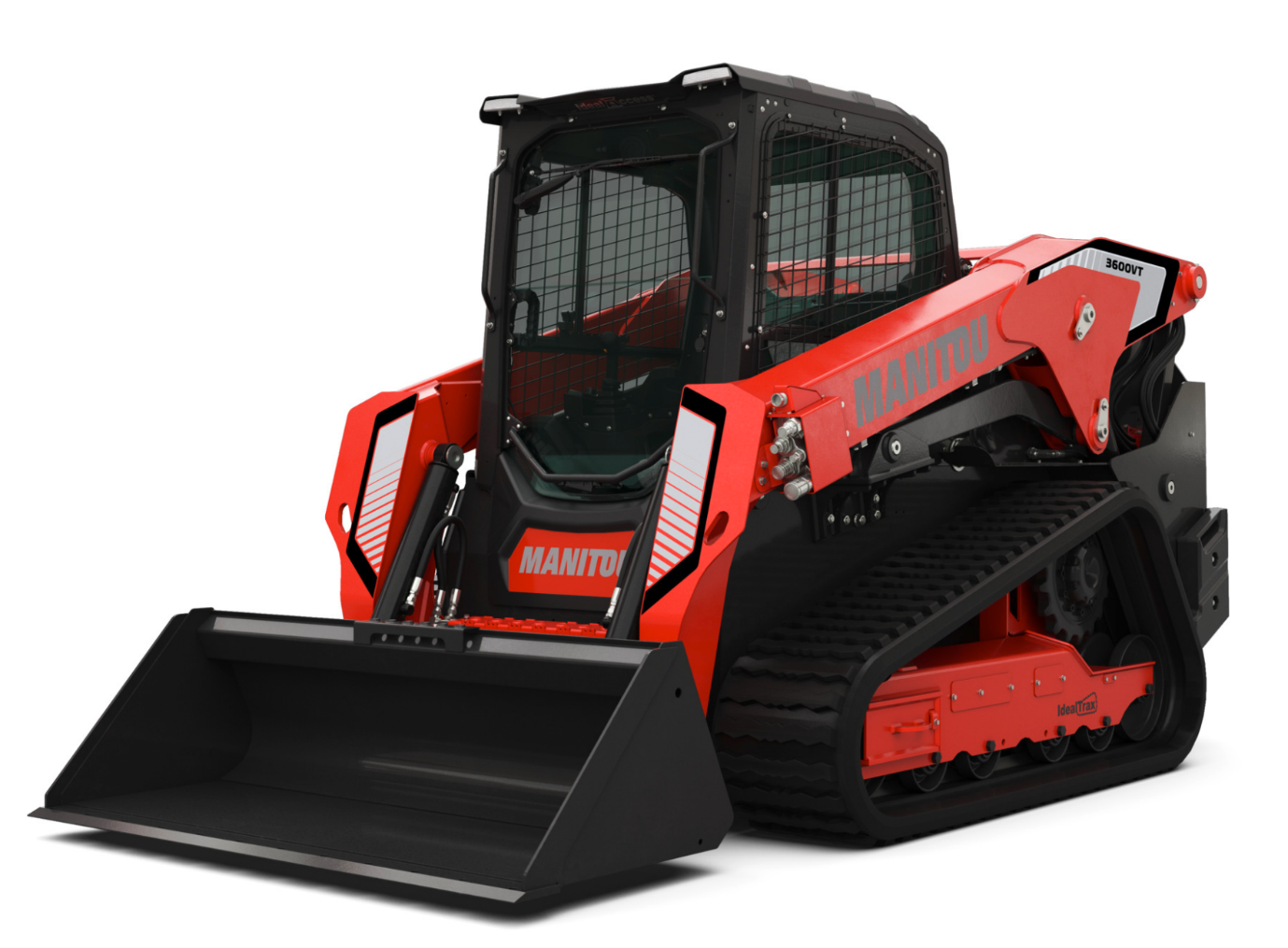

Manitou manufactures large-frame compact track loaders and skid-steer loaders in addition to telehandlers. The 3600VT is Manitou's largest compact track loader ever.

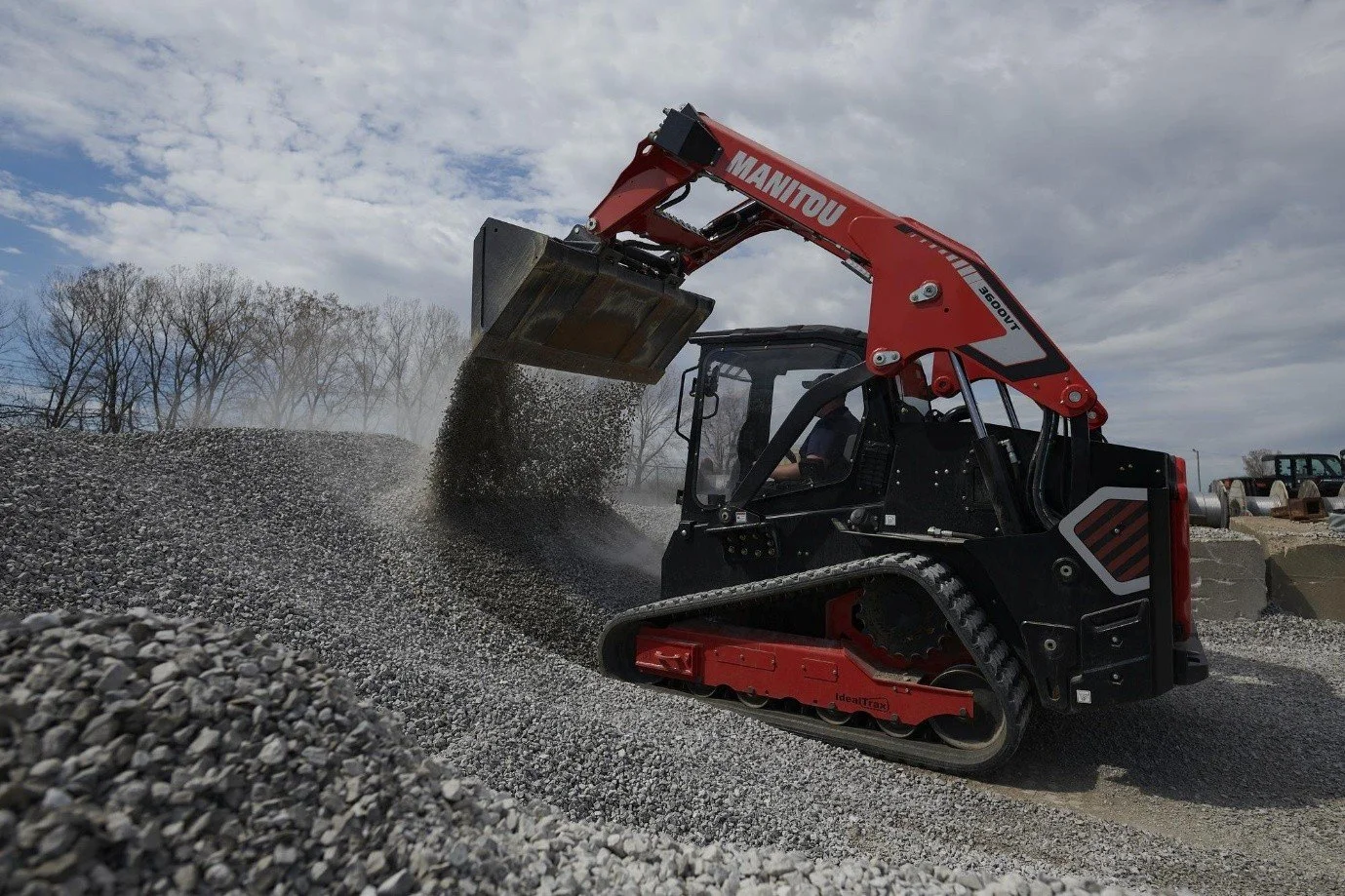

The new loader features a vertical lift design with a hinge pin height of up to 11 feet 4 inches. Each model comes standard with a cast connecting rod, adding strength for ground-engaging applications. Breakout force for the bucket and lift arms has also been increased. Large compact track loaders are commonly used for truck loading and material handling, making the vertical lift path more suitable for both types of activities.

To enhance versatility and reduce Total Cost of Ownership, Manitou has improved the hydraulic flow and pressure on both standard-flow and high-flow models, allowing for the use of high-powered attachments. Standard-flow units offer up to 25 gallons per minute and 3,450 psi, while high-flow models offer 40 gallons per minute and up to 3,450 psi. Variable flow control helps attachments operate at optimal performance while conserving fuel. An optional adjustable creep mode with a boost pedal makes it easier for operators to match ground speed with the desired performance of attachments such as cold planers and brooms.

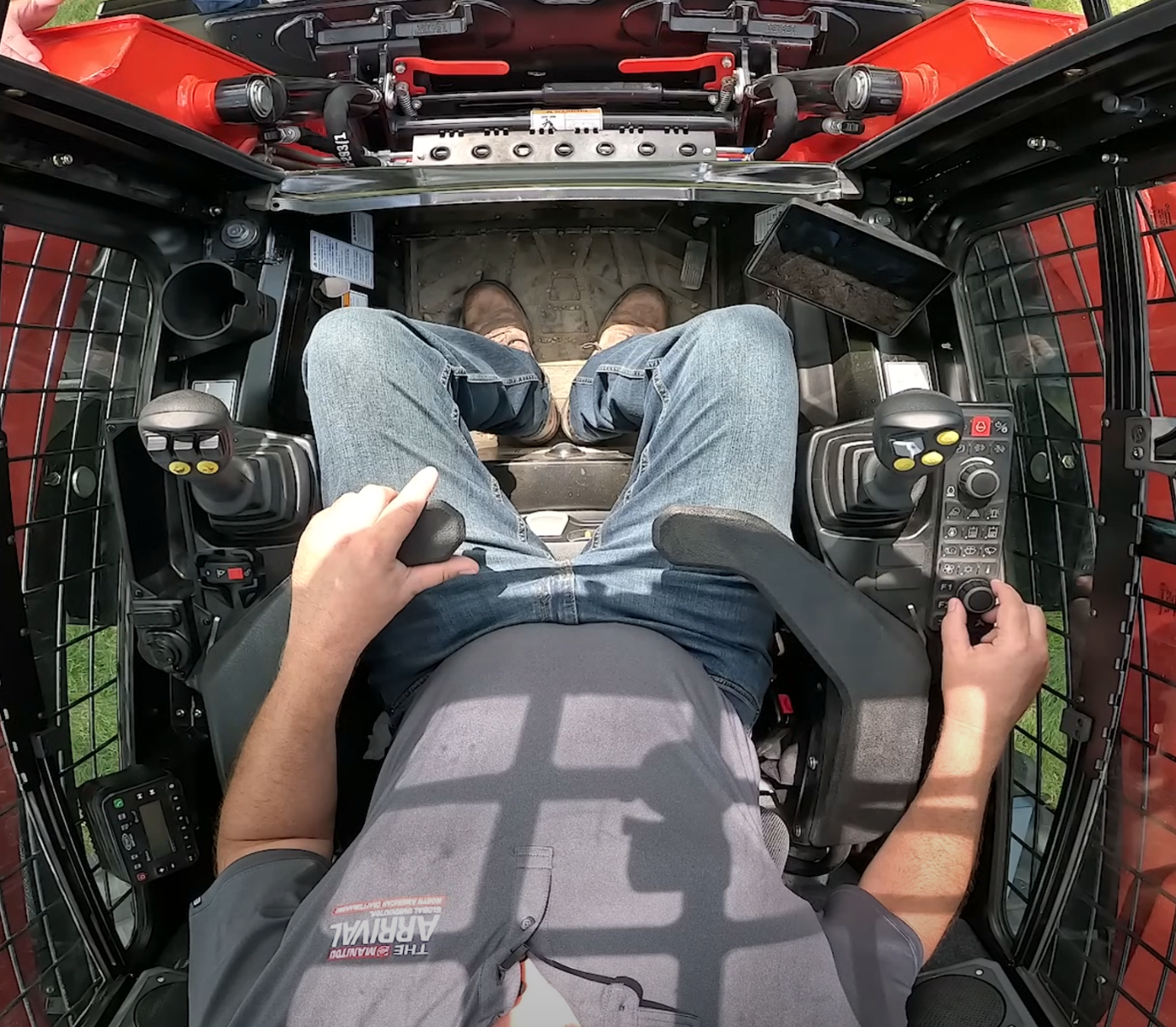

Manitou stated that they drew influences from the automotive industry when designing the new model's cab, but industrialized these influences to suit everyday use and heavy-duty work. Each machine's cab comes standard with accelerator and decelerator pedals, a dome light, a USB charging port with equipment storage, and removable rubber floor mats with a drain that provides direct access to the underside of the machine for easy cleaning.

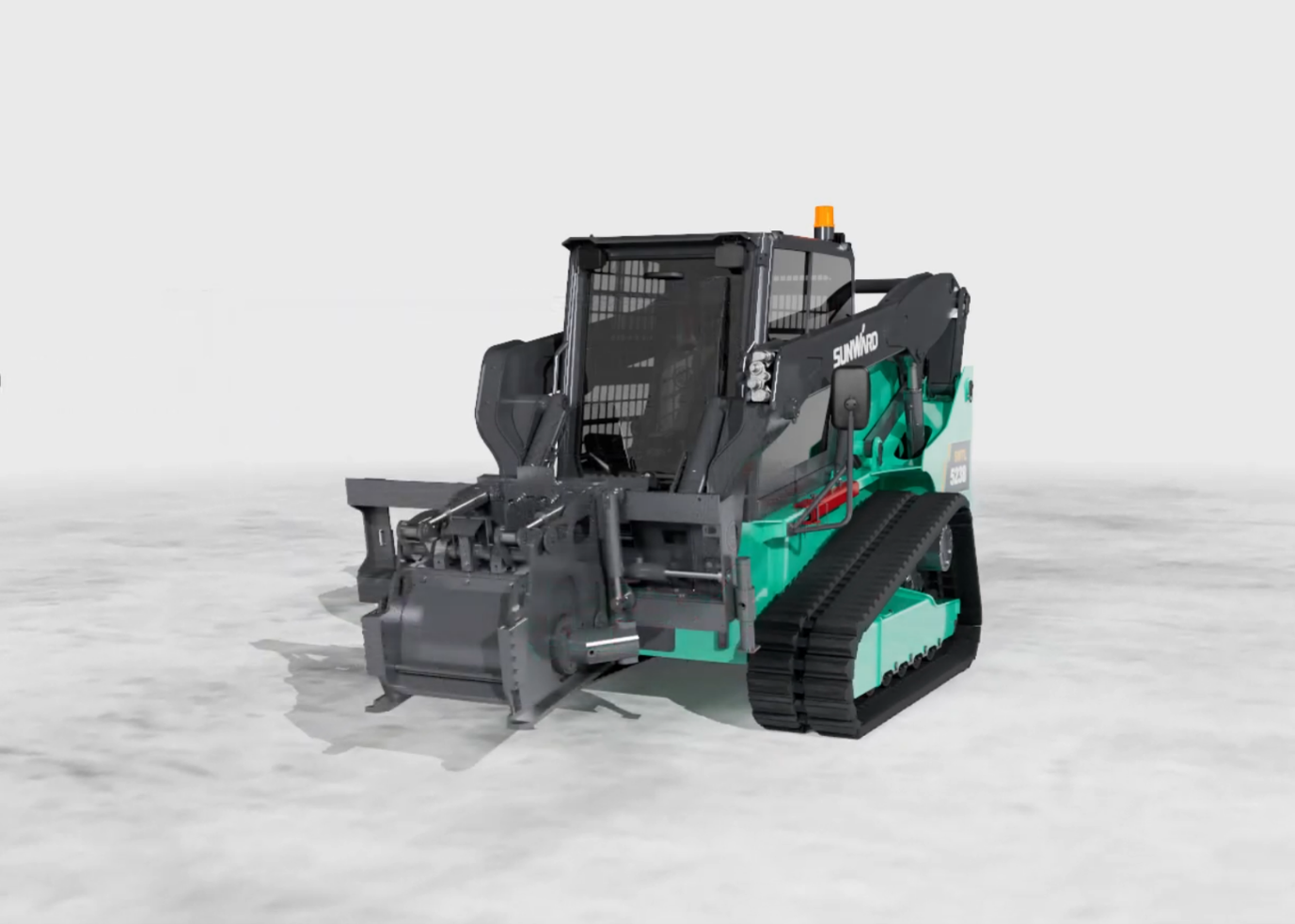

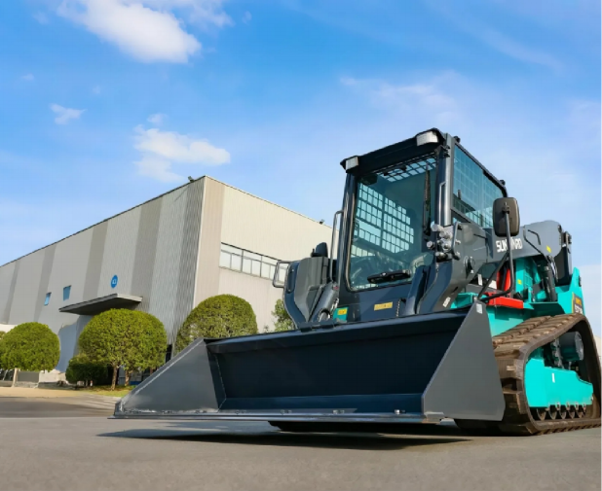

Sunward SWTL5238.

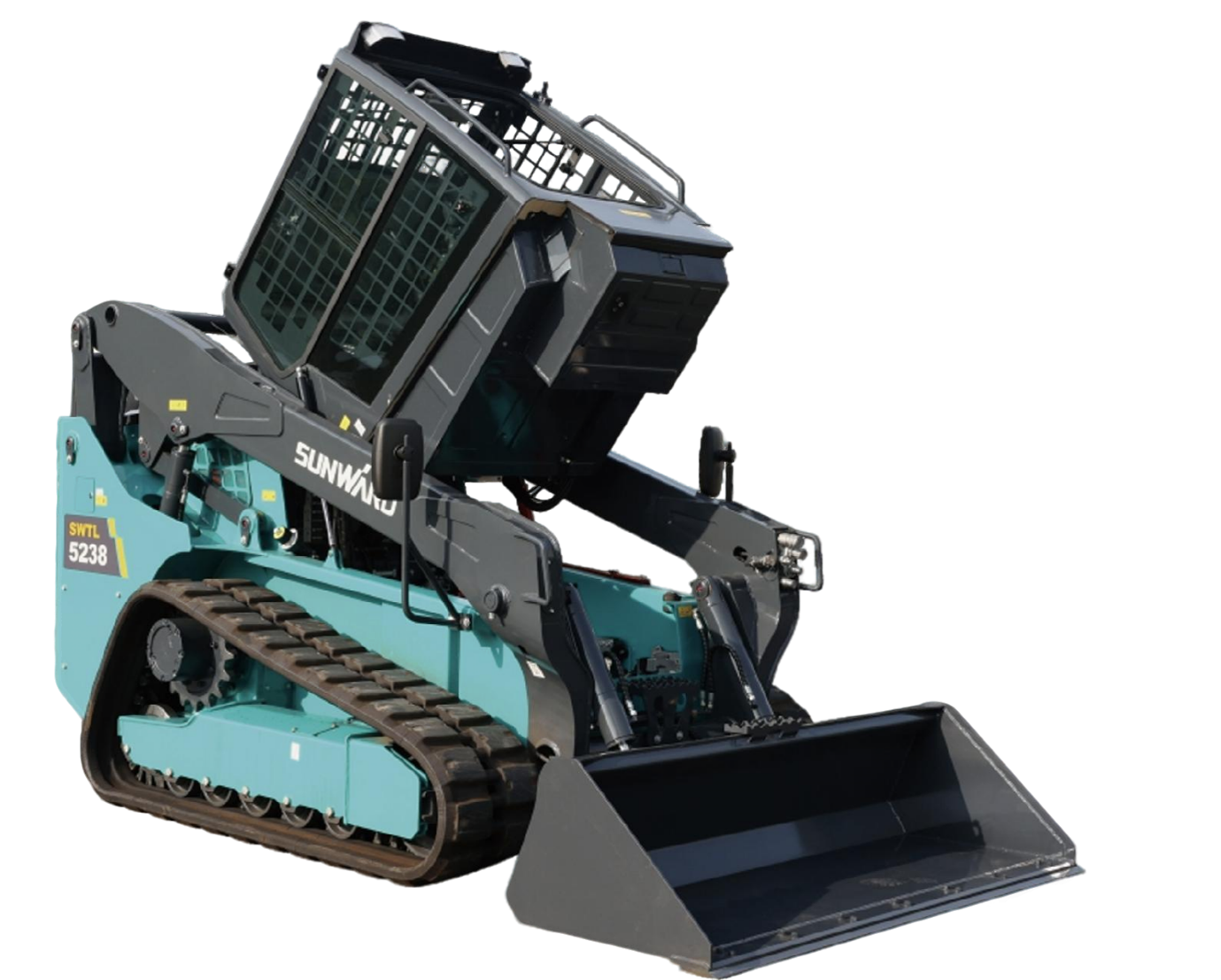

As a leading Chinese compact loader manufacturer, Sunward launched the SWTL5238 globally in North America. The SWTL5238 features a brand-new design, a maximum travel speed of 12 km/h, a traction force of 5500 N, a maximum lift height of 3361 mm, and a rated lift capacity of 1500 kg. The cab opens upward 58 degrees. The rear maintenance hatch is split into upper and lower sections, opening 31 degrees upward and 90 degrees to the left, respectively. The radiator also opens 20 degrees upward, maximizing maintenance and servicing convenience. The cab door also features a flip-up design, but this design can compromise the cab's sealing and noise reduction capabilities after extended use.

CAT 285 XE.

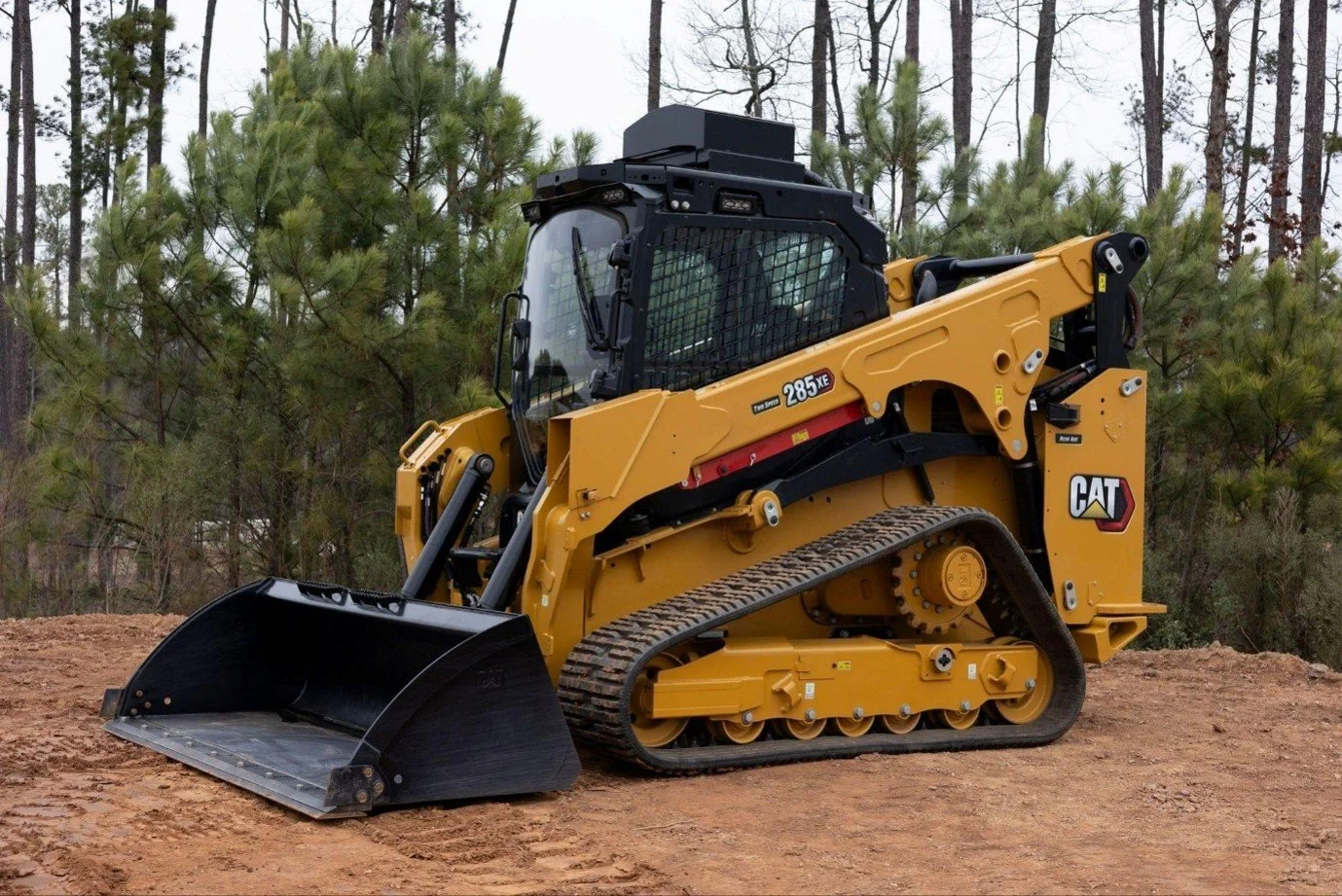

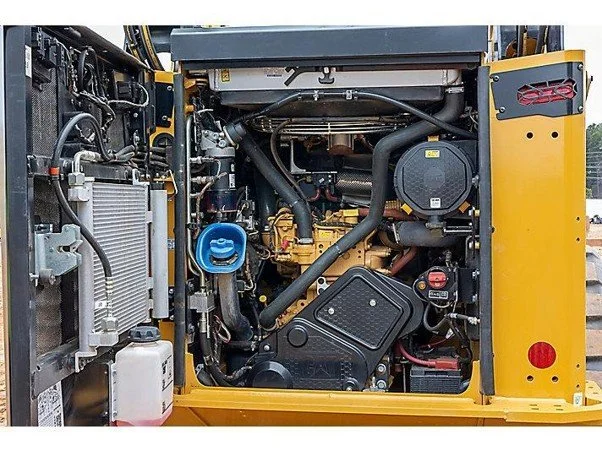

Caterpillar introduced a new machine nomenclature: Skid Steer Loader models now end with "0," and CTL models end with "5." The Cat® 285 XE Compact Track Loader features a vertical lift design, providing a greater reach and lift height for quick and easy truck loading. Its standard E-bar undercarriage and two-speed travel provide excellent traction, flotation, stability, and speed.

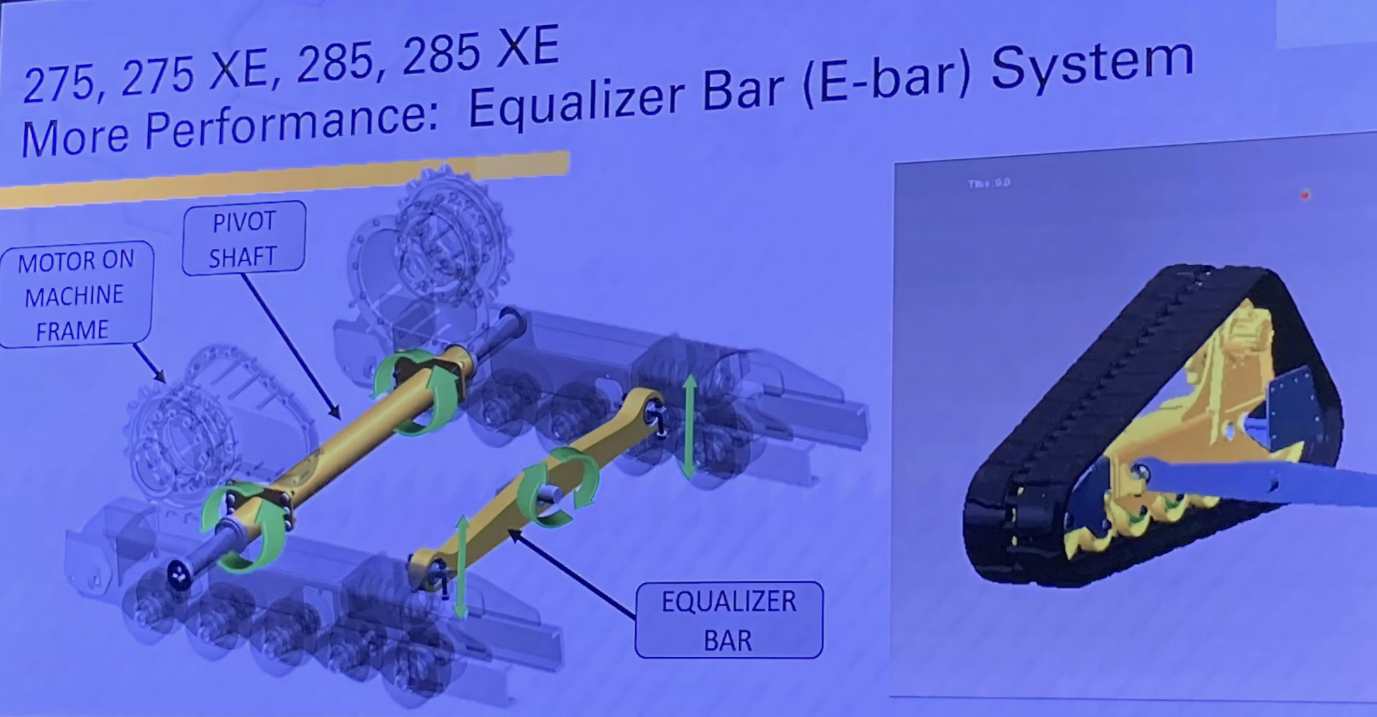

The E-bar undercarriage has a pivot at the rear, allowing for some movement, while the front equalizer bar moves around the center. The equalizer bar is not welded to the machine chassis, allowing the undercarriage to move independently. The equalizer bar improves stability when the truck is loaded with heavy loads such as dirt or rock. Previous CTL tracks would wobble when the machine approached a truck, and when dozing, the tracks would lift off the ground. The 299D3 boasts 50% more torque, higher lift height, and greater lift and tilt breakout force than the 299D3. The redesigned cab layout provides more space and easier ingress and egress.

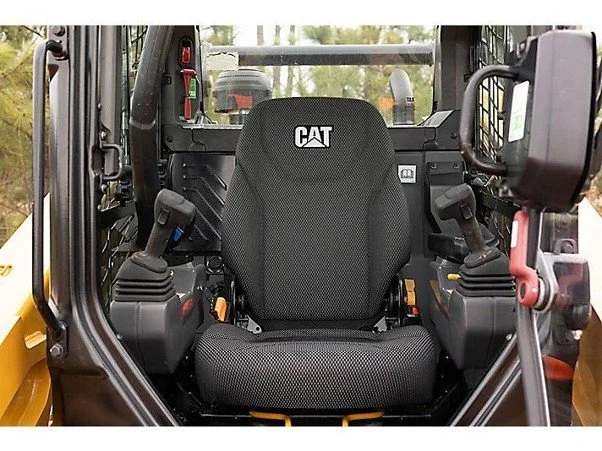

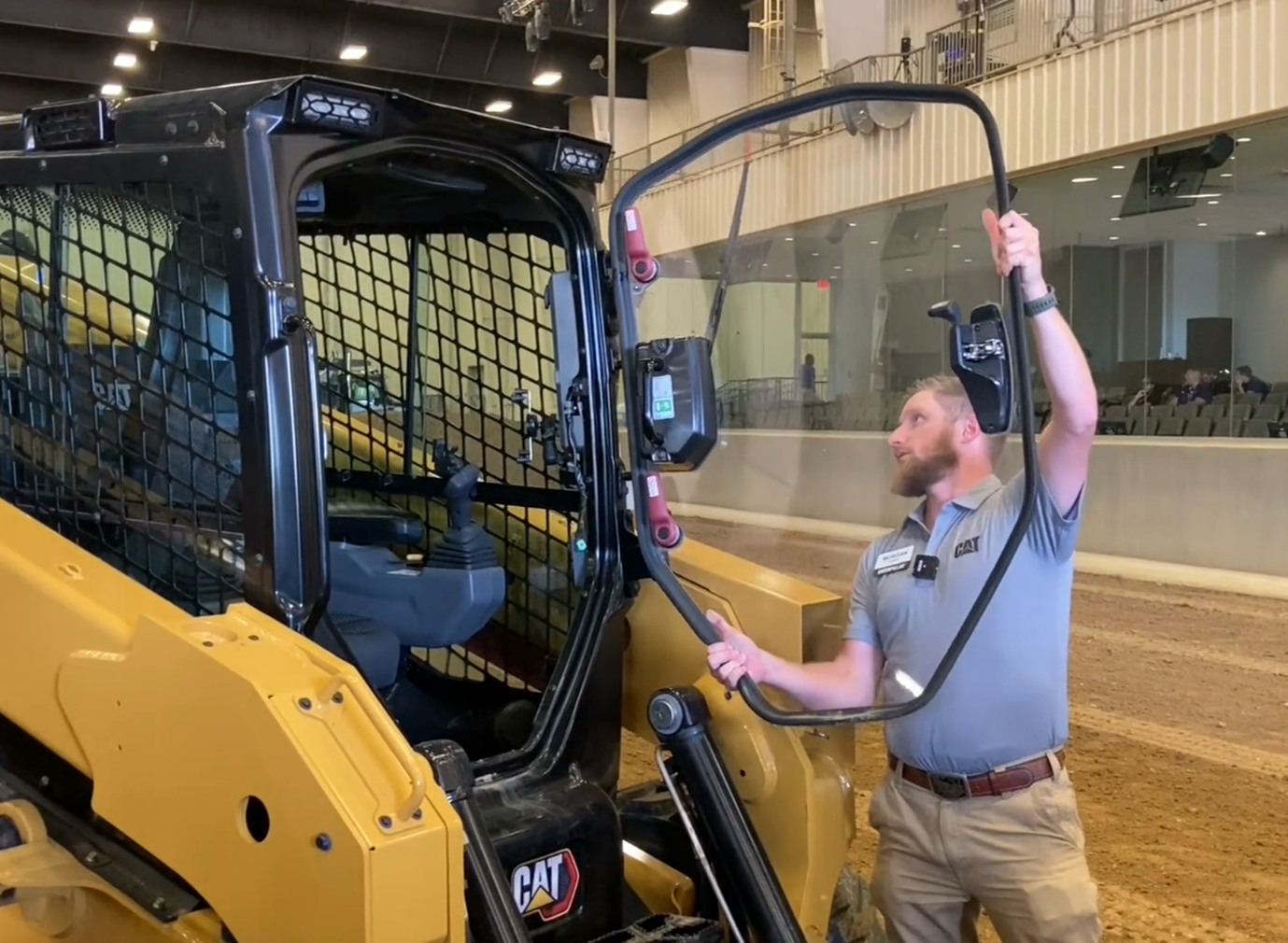

Larger cab design increases overall volume by 22% and footwell by 26%. The new cab features 2.75 inches more interior width, 1.8 inches more height from footwell to ceiling, 1.5 inches more hip room, and 1.1 inches more width between joysticks. A simplified two-step door removal process allows operators to quickly remove the doors without tools. When the system detects that a door has been removed, it automatically switches to doorless driving mode.

Takeuchi TL12V2.

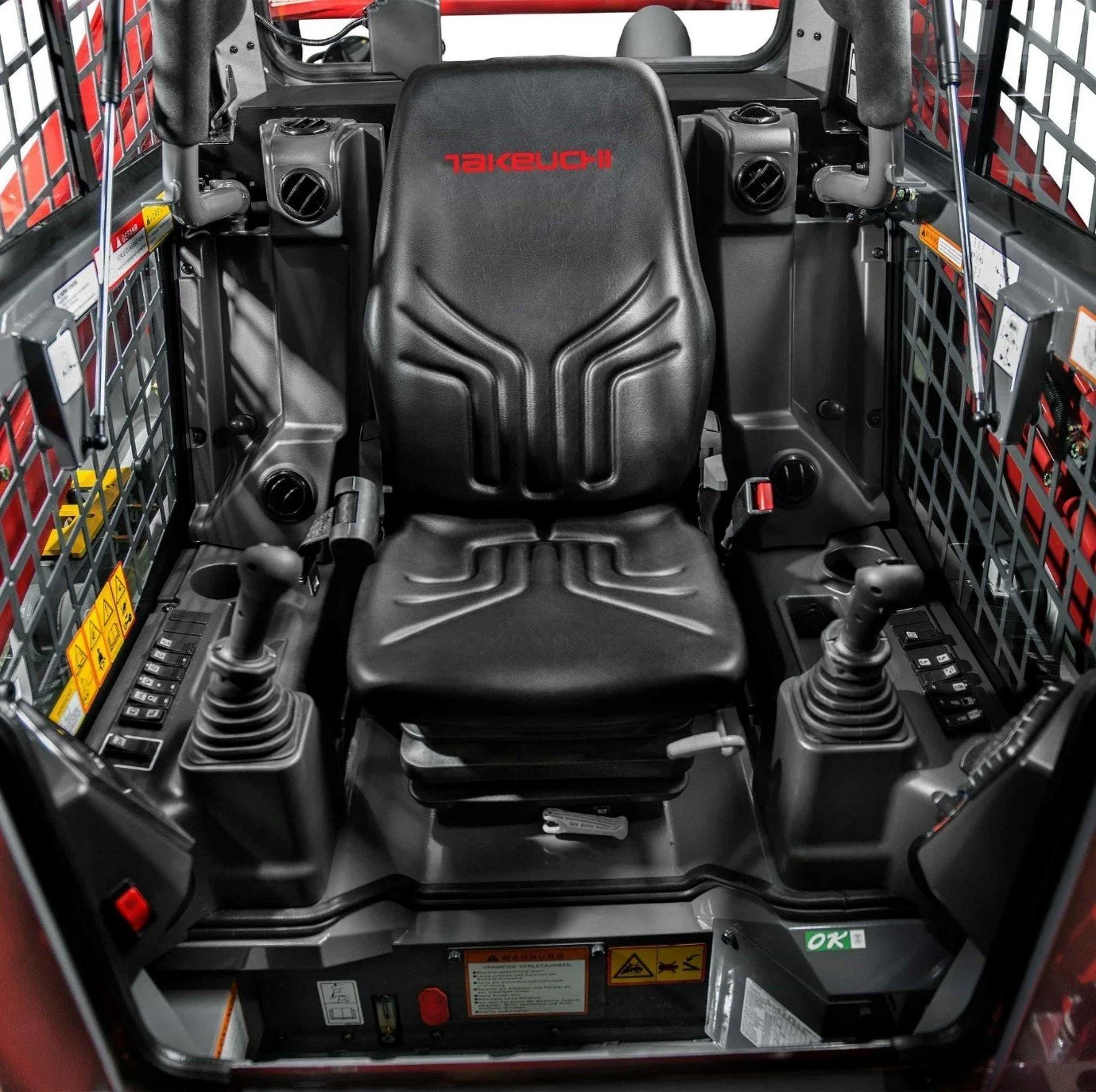

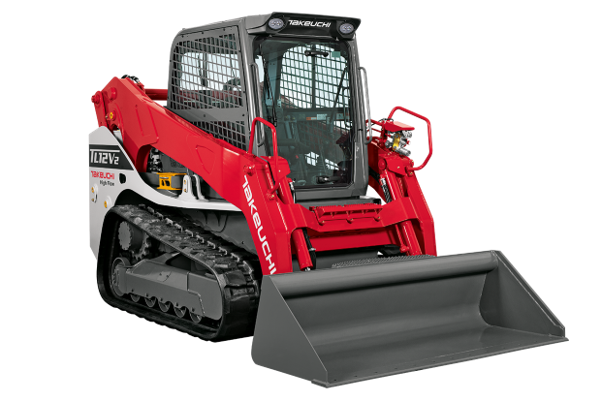

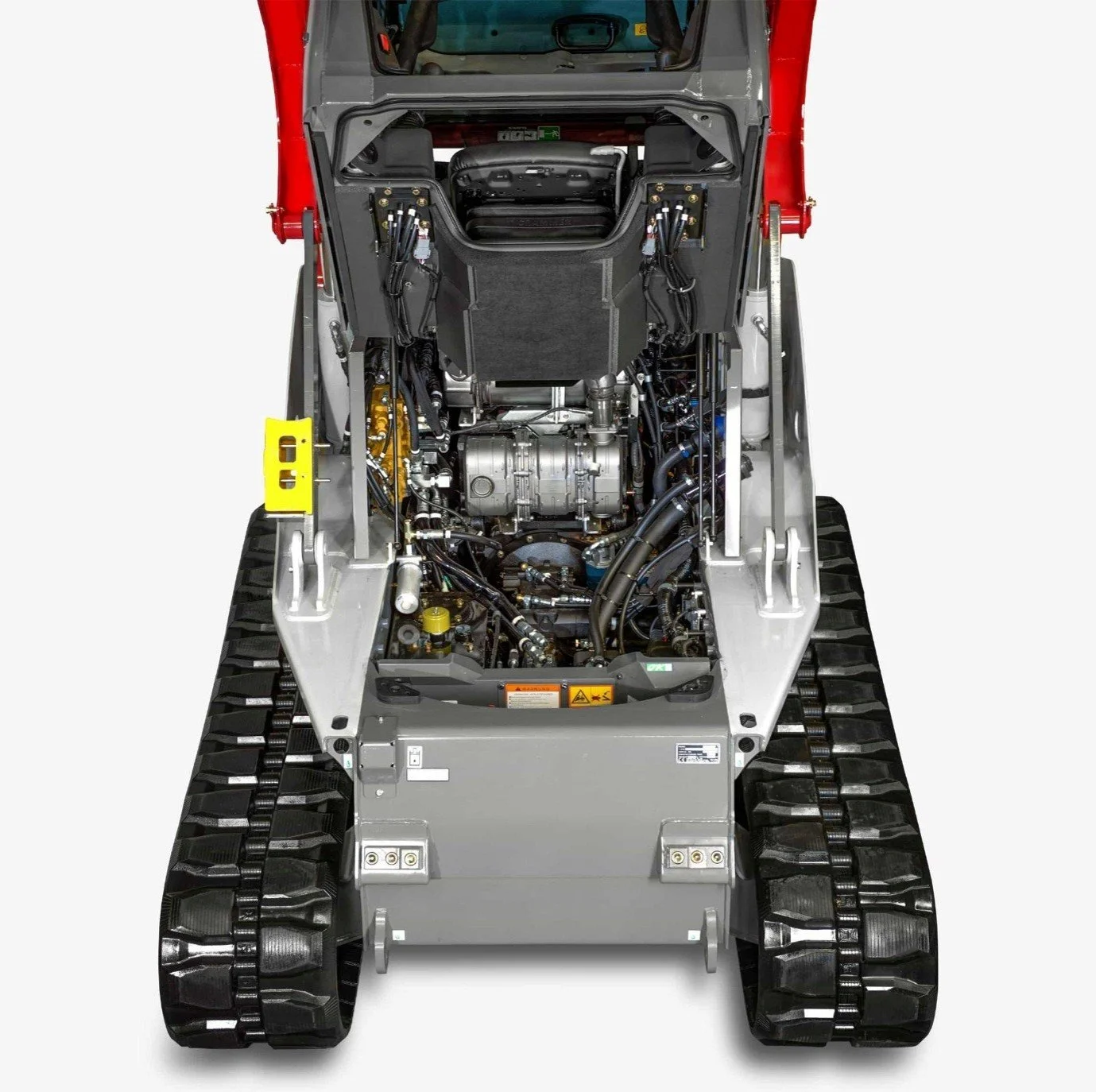

Takeuchi, the world's first company to develop a compact crawler loader, officially debuted the TL12V2 at the ConExpo/Intermat show in the United States around 2016.The TL12V2 is Takeuchi's first vertical lift path compact crawler loader (CTL) and an upgraded version of the TL12 series. It replaces the TL12 (originally a radial lift), hence the addition of "V2" to the model name, representing Vertical 2nd Generation. The TL12V2 features a 17.7-inch wide "silent track" design with a new tread pattern that reduces noise and vibration. This tread pattern creates greater flotation and minimizes ground disturbance. The steel-core rubber track extends its life while reducing impact and providing a less uncomfortable ride. The cab features a high-back, deluxe air-suspension seat, greatly enhancing driver comfort and making it ideal for extended work shifts. The air conditioning vents have been optimized to maintain a consistent temperature throughout the cabin.

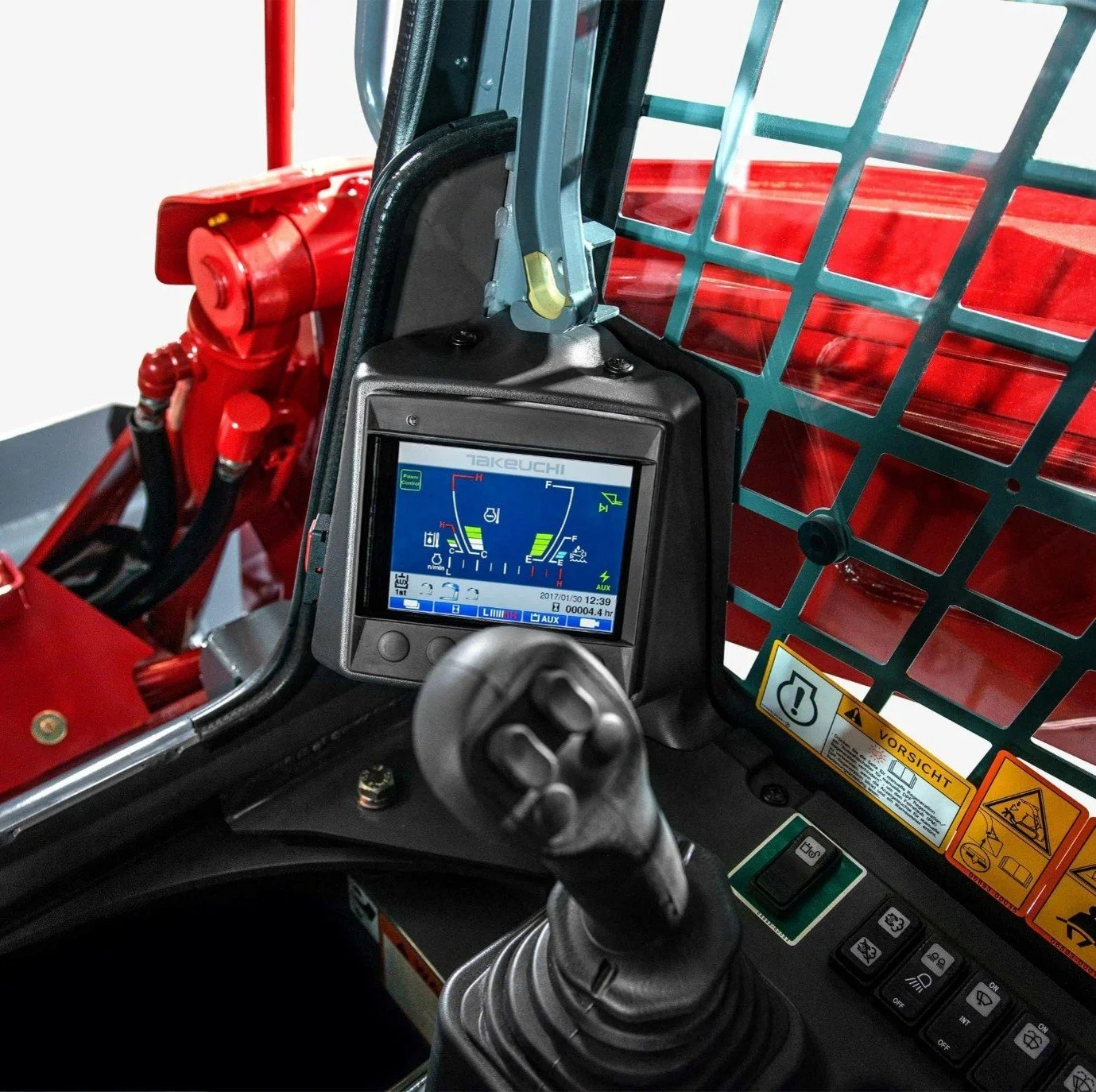

A new 5.7-inch color display and pilot handle allow for direct hydraulic flow adjustment, and newly designed armrests allow hands to rest naturally on the handles for operation. An AM/FM/MP3 radio includes a NOAA (National Oceanic and Atmospheric Administration) weather band. Though Takeuchi equipment is expensive, it offers the most reliable design, earning it the title of the lowest cost of ownership in the industry.

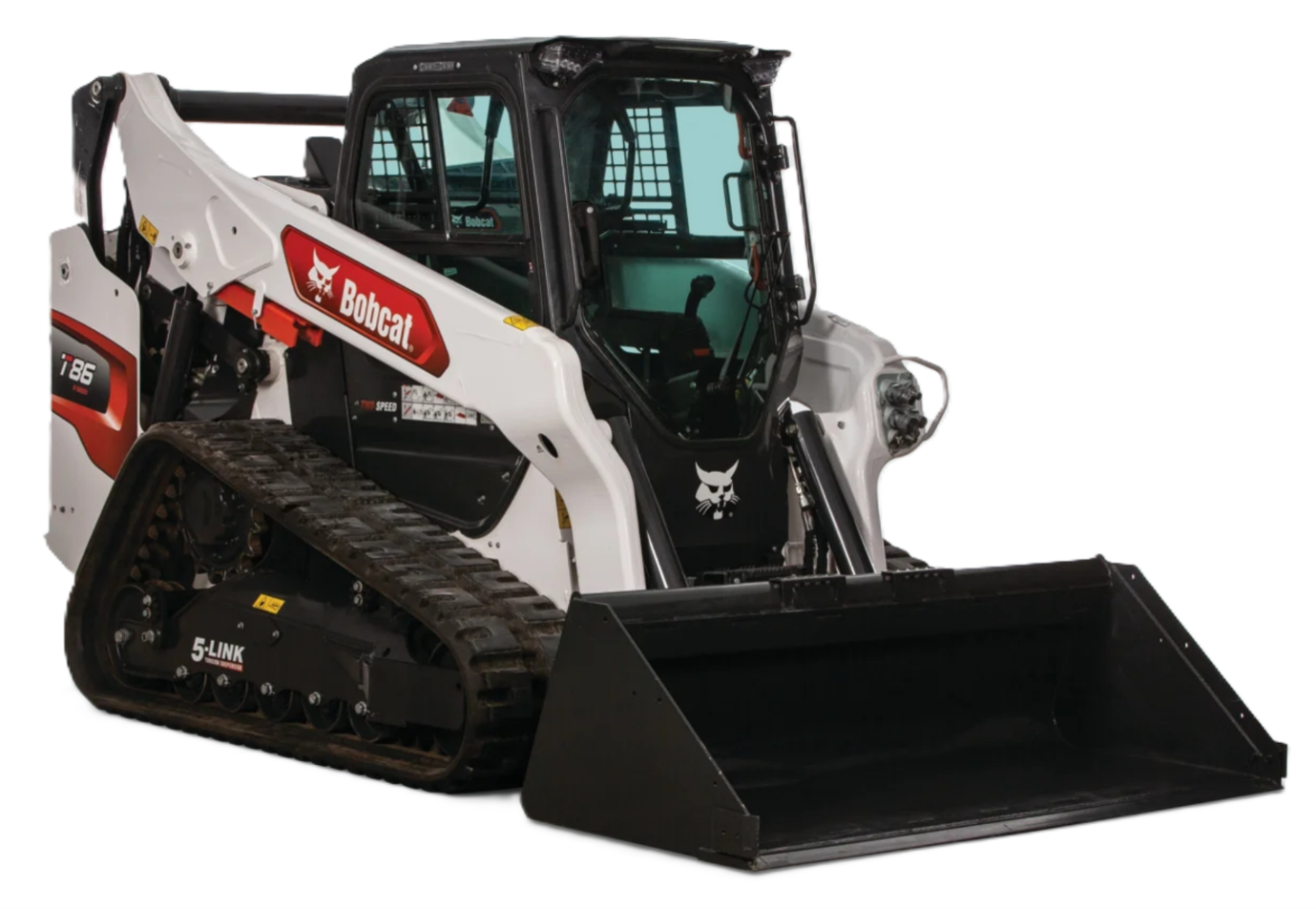

Bobcat T86.
As a benchmark for skid/compact loaders and a setter of technology and standards, Bobcat has maintained a market share of 30% to 40% in its birthplace, North America. There is much to learn from its design philosophy.

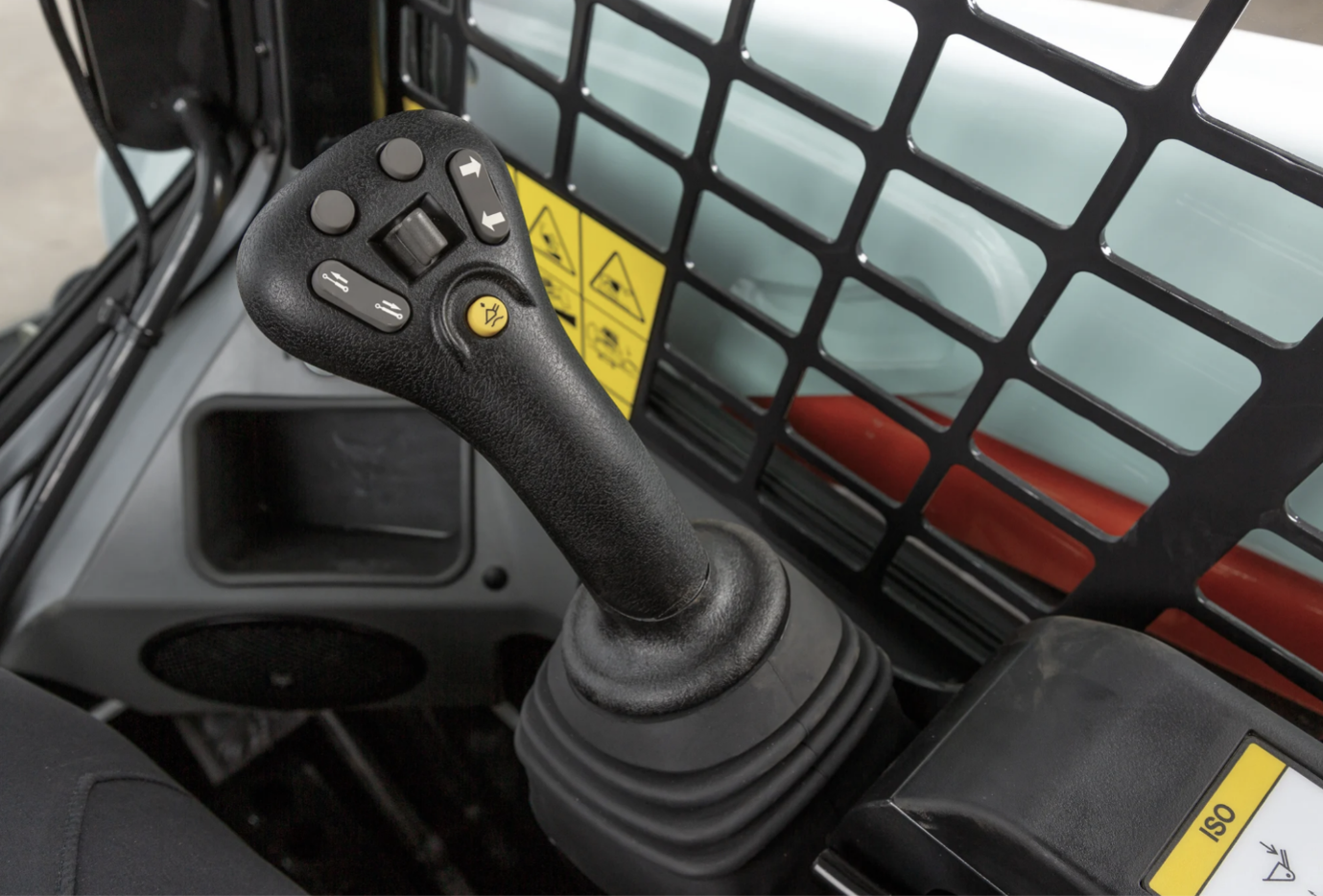

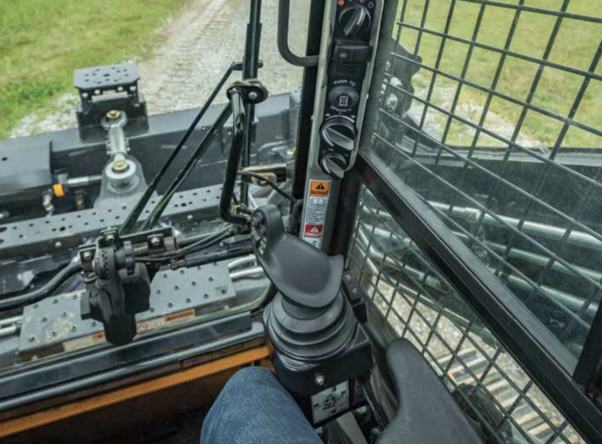

The Selectable Joystick Control offers a choice of ISO or H-mode to meet the needs of different operators. Featuring fingertip switches and selectable control modes, the fingertip control allows you to easily control multiple machine functions without releasing the joystick and can be adjusted separately from the operator seat. All loaders equipped with the optional Joystick Control can also be operated remotely without an operator in the cab.

Every component of the five-link torsion suspension chassis has been meticulously designed to withstand the toughest jobsite conditions. It starts with an improved drive motor that provides continuous lubrication of the hydraulic system for extended service life. Other components are larger and more durable, including the shafts within the transmission, the track rollers, and the rear idler. Hydraulic hoses are meticulously routed within the undercarriage, eliminating potential snag points. Noise and vibration on the jobsite can make work uncomfortable. With a 5-link torsion suspension chassis, vibration reduction and sound insulation are improved. Additional pivot points in the chassis reduce vibration. The torsion axle also dampens vibration for a smoother ride. No other manufacturer can match the ride quality of the torsion suspension. Each component works together to effectively absorb jobsite stresses. The additional pivot points enhance ride quality, and the unique fifth link in the rear axle provides greater stability. Other components, such as wider rollers, a double-flange front idler, and longer tracks, further improve the machine's ride.

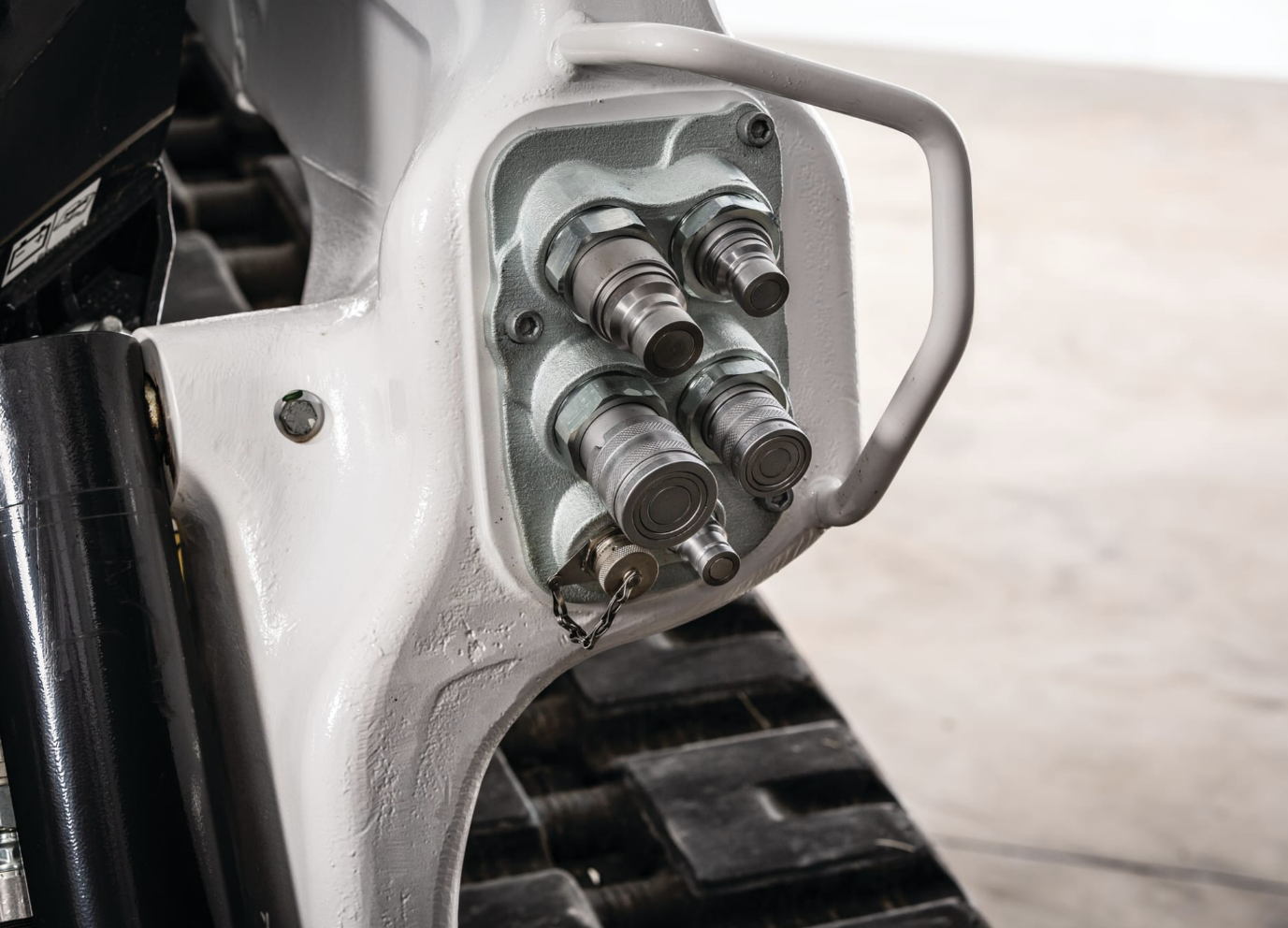

The T86 is available in three hydraulic flow rates: Standard (89.3 L/min), High (138.5 L/min), and Super (158.9 L/min). The High flow option is suitable for complex attachments, while the Super flow option maximizes productivity. The T86's boom features cast steel construction for increased strength and rigidity. Cast steel allows for a slimmer profile while providing greater strength and improving visibility. Tie-downs on the boom are also easy to locate and use. The size of the auxiliary hydraulic hoses and tubing has been increased from 3/4-inch diameter to 1-inch, allowing for less restricted hydraulic oil flow. This creates more efficient flow and ultimately lower operating temperatures.

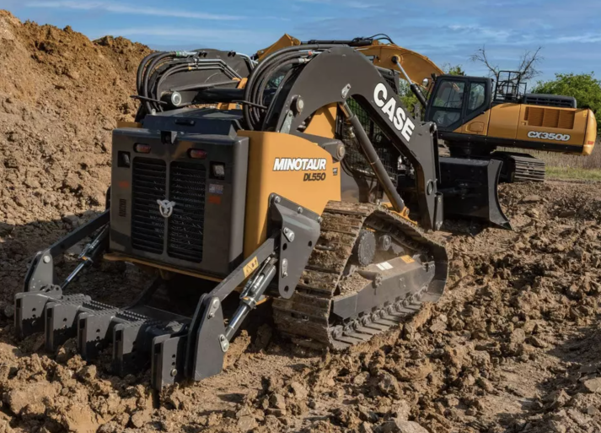

CASE Minotaur™ DL550.
The concept/prototype first appeared at the 2017 CONEXPO-CON/AGG trade show, where CASE began showcasing the "Minotaur" concept or prototype. The concept phase involved multiple rounds of customer research, design iterations, and prototype testing. Interaction with user feedback led to a shift in design from the initial radial lift to a vertical lift. In 2022, the Minotaur DL550 was officially launched at the CASE Customer Center in Tomahawk, Wisconsin, USA, marking the launch of a new "Compact Dozer Loader" category. CASE then launched a North American exhibition tour (over 30 locations) to promote this new model, allowing dealers and users to see the machine's features and performance first-hand.

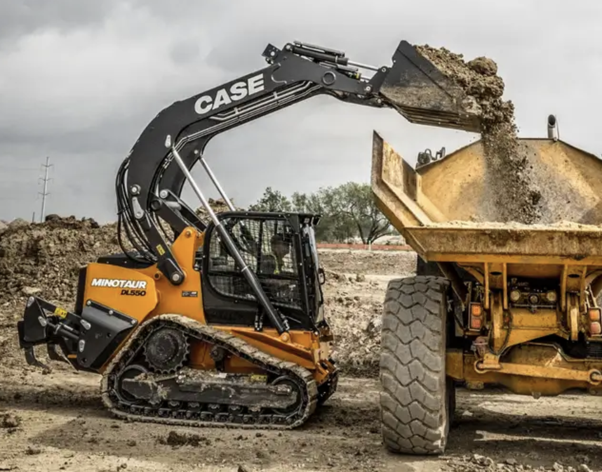

The CASE Minotaur™ DL550 compact dozer loader weighs significantly more than other compact loaders (8.4 tons), representing a "dozer + loader" hybrid. The Minotaur has the profile of a compact track loader, but it also embodies pure dozer DNA. It boasts 114 horsepower, over 25,000 pounds of tractive effort, over 12,000 pounds of bucket breakout force, and a rated operating capacity of 5,500 pounds (at 50% of tipping load). CASE designed the Minotaur with an Integrated C-frame Chassis and a six-way dozer blade. Rather than simply attaching a dozer blade to the front of a loader, the blade's structure is integrated into the frame (a combination of chassis and coupler), ensuring drawbar pull, stability, and durability similar to those of a small dozer.

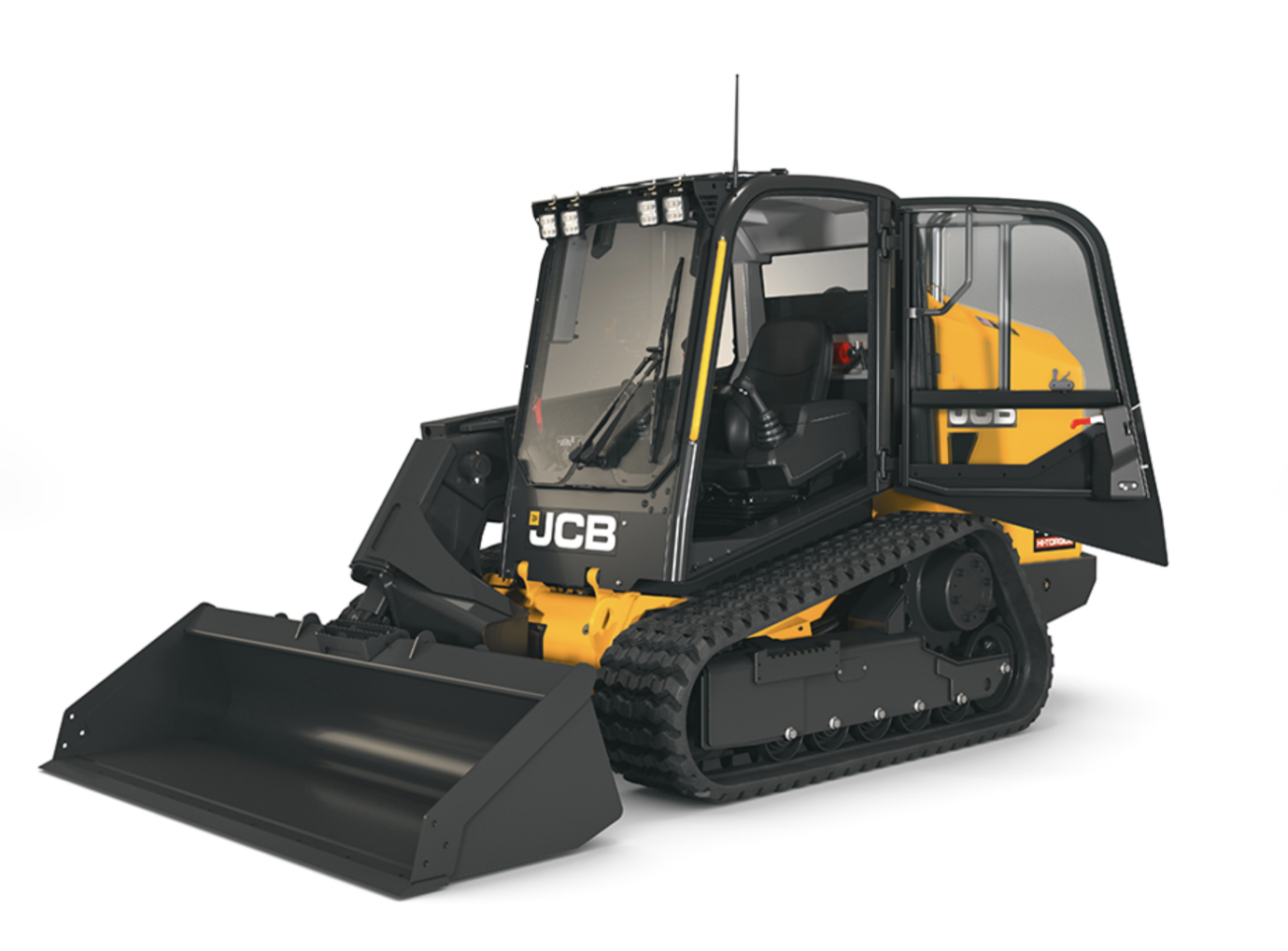

JCB 4TS Teleskid.

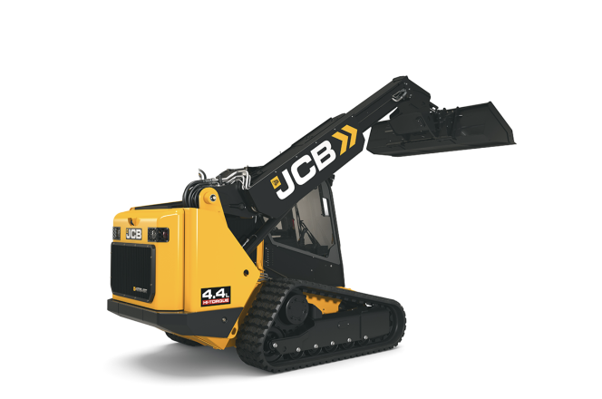

The JCB Teleskid shares this design philosophy, combining four functions in one: a forklift, a telescopic handler, a small wheel loader, and, of course, a skid steer loader. In 2017, JCB developed the world's first single-arm telescopic skid steer loader (3TS Teleskid), addressing the inconvenient access and limited visibility of traditional dual-arm skid steer loaders. This is a classic example of "user-focused" product innovation.The JCB door on the left side of the machine not only makes the machine easier to access and more comfortable to use, but also makes JCB the safest skid steer loader on the market. The 4TS Teleskid builds on this foundation, a next-generation large telescopic crawler compact loader developed to meet market demands. With an industry-leading lift height of 4.5 meters and a reach of 2.5 meters, the 4TS Teleskid is an ideal replacement for smaller telehandlers on construction sites. Its 3.9-meter dump height meets most working conditions. The 4TS Teleskid also offers three hydraulic flow rates: standard (90 liters/minute), high (125 liters/minute), and ultra (160 liters/minute), enabling it to accommodate a variety of high-powered attachments. The JCB Teleskid utilizes a proven, high-strength steel boom mounted on a one-piece, fully welded chassis.

Sino Partners Insights.
Caterpillar stated that all of its next-generation loaders will utilize vertical lift, reflecting the market's shift away from radial-lift compact loaders. At the same time, all manufacturers are continuously improving the driver experience in their compact loaders, increasing cab space and offering features like heated seats, air suspension seats, and three-point seatbelts, significantly reducing discomfort during extended work.

Both JCB and Case have launched highly successful crossover products in their respective segments. Their success stems from customer demand, extensive testing, and customer feedback, resulting in bold innovations that are particularly worth learning from for Chinese manufacturers.

We've also seen that most manufacturers often launch a series of models simultaneously when releasing new products. These products are typically based on a unified platform architecture. Once a platform is developed, multiple models can be quickly derived, resulting in high component sharing and low centralized release costs.

From a product portfolio perspective, releasing an entire product line at once creates a clear product matrix, covering diverse customer needs, facilitating marketing and dealer promotion and enhancing brand integrity and professionalism.
